| LED Backlight | |||||||||||||||
 |
 |
||||||||||||||

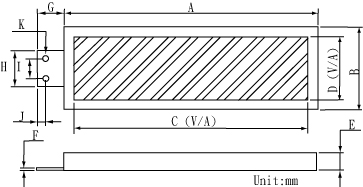

PART
NUMBER |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
(V/A) |
Vf
(V) |
Color
λD (nm) |
Iv
(cd/m2) |
| UHCB09-1 | 124.0 |
27.0 |
121.5 |
24.5 |
5.6 |
0.8 |
13.5 |
10.0 |
7.0 |
2.5 |
1.0 |
121.5*24.5 |
4.1 |
573 |
260 |
| UHCB11-1 | 144.4 |
51.4 |
135.0 |
42.0 |
6.0 |
0.6 |
17.3 |
12.0 |
7.0 |
2.5 |
0.65 |
135.0*42.0 |
4.2 |
573 |
320 |
| UHCB12-2 | 142.6 |
48.1 |
133.0 |
40.0 |
7.1 |
0.8 |
17.4 |
35.0 |
7.0 |
4.0 |
2.0 |
133.0*40.0 |
3.9 |
587 |
1070 |
| UHCB13-1 | 68.9 |
18.0 |
66.9 |
16.0 |
5.2 |
0.8 |
3.0 |
10.0 |
5.08 |
0.0 |
1.0 |
66.9*16.0 |
4.0 |
573 |
180 |
| UHCB18-1 | 89.0 |
24.5 |
86.0 |
21.5 |
5.3 |
0.8 |
12.5 |
11.0 |
7.0 |
2.5 |
1.9 |
86.0*21.5 |
4.0 |
573 |
250 |
| UHCB19-1 | 78.0 |
53.0 |
72.0 |
48.0 |
5.2 |
0.8 |
8.0 |
10.0 |
7.0 |
2.5 |
1.0 |
72.0*48.0 |
4.1 |
573 |
300 |
| UHCB20-1 | 69.0 |
24.0 |
65.0 |
18.4 |
5.5 |
0.8 |
8.0 |
15.0 |
9.0 |
3.0 |
3.0 |
65.0*18.4 |
4.1 |
573 |
205 |
| UHCB21-1 | 76.7 |
46.0 |
75.1 |
39.8 |
5.4 |
0.8 |
8.15 |
10.0 |
7.0 |
2.5 |
1.2 |
75.1*39.8 |
4.1 |
573 |
220 |
| UHCB22-1 | 104.0 |
28.0 |
101.0 |
25.0 |
5.8 |
0.8 |
9.0 |
12.0 |
7.0 |
2.5 |
1.2 |
101.0*25.0 |
4.1 |
573 |
195 |
| UHCB23-1 | 69.1 |
18.0 |
66.5 |
16.0 |
5.3 |
0.8 |
5.5 |
10.0 |
5.08 |
2.5 |
1.0 |
66.5*16.0 |
4.1 |
573 |
205 |
| UHCB24-1 | 68.9 |
22.0 |
65.0 |
18.0 |
5.3 |
0.8 |
5.5 |
16.0 |
5.0 |
2.0 |
1.0 |
65.0*18.0 |
4.1 |
573 |
175 |
| UHCB25-1 | 85.0 |
30.0 |
80.0 |
27.2 |
5.6 |
0.8 |
6.5 |
12.0 |
7.0 |
2.5 |
1.1 |
80.0*27.2 |
4.1 |
573 |
275 |
| UHCB26-1 | 99.0 |
21.0 |
94.5 |
17.0 |
5.6 |
0.8 |
6.0 |
12.0 |
7.0 |
1.5 |
1.0 |
94.5*17.0 |
4.1 |
573 |
245 |
| UHCB27-1 | 104.1 |
17.0 |
101.0 |
14.0 |
5.9 |
0.8 |
9.0 |
12.0 |
7.0 |
2.5 |
1.2 |
101.0*14.0 |
4.1 |
573 |
200 |
| UHCB28-1 | 69.0 |
24.0 |
65.0 |
18.4 |
5.0 |
0.6 |
8.0 |
15.0 |
9.0 |
3.0 |
3.0 |
65.0*18.4 |
4.1 |
573 |
240 |
| UHCB29-1 | 80.0 |
43.5 |
75.0 |
41.7 |
5.6 |
0.8 |
15.9 |
12.0 |
7.0 |
1.9 |
1.9 |
75.0*41.7 |
20.0 |
573 |
170 |
| UHCB30-1 | 39.9 |
21.0 |
38.0 |
16.3 |
5.0 |
0.6 |
9.1 |
10.0 |
5.08 |
2.5 |
1.0 |
38.0*16.3 |
4.1 |
573 |
220 |
| UHCB31-1 | 119.0 |
72.0 |
116.0 |
67.0 |
5.0 |
0.8 |
12.5 |
15.0 |
12.0 |
2.0 |
1.0 |
116.0*67.0 |
4.1 |
573 |
240 |
| UHCB32-1 | 67.0 |
29.1 |
65.0 |
26.5 |
5.2 |
0.8 |
10.0 |
12.0 |
7.0 |
2.5 |
1.2 |
65.0*26.5 |
4.1 |
573 |
305 |
| UHCB34-1 | 62.0 |
24.0 |
60.0 |
22.0 |
5.0 |
0.8 |
7.0 |
10.0 |
5.08 |
2.0 |
1.0 |
60.0*22.0 |
4.1 |
573 |
200 |
| UHCB35-1 | 106.3 |
29.0 |
102.2 |
26.0 |
5.0 |
0.8 |
5.0 |
10.0 |
5.08 |
2.5 |
0.6 |
102.2*16.0 |
12.2 |
573 |
240 |
| UHCB36-1 | 104.0 |
28.0 |
100.5 |
25.0 |
5.8 |
0.6 |
6.0 |
12.0 |
7.0 |
2.5 |
1.2 |
100.5*25.0 |
4.1 |
573 |
250 |
| UHCB37-1 | 81.0 |
18.6 |
78.0 |
16.2 |
5.8 |
0.6 |
2.6 |
10.0 |
5.08 |
1.3 |
1.0 |
78.0*16.2 |
4.1 |
573 |
220 |
