| D8038E48B |
|
| 1.
MODEL NUMBER |
D8038E48B(T1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
| 3.

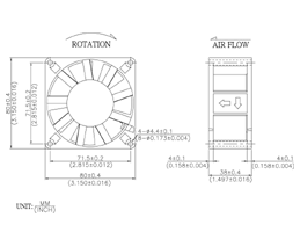

FRAME SIZE |
80
x 80 x 38 mm (3.1 x 3.1 x 1.5 inch) |
| 4.
RATED VOLTAGE |
48
VDC |
| 5.
OPERATING VOLTAGE RANGE |
38
V ~ 52.8 V |
| 6.
START-UP VOLTAGE |
38
V / Min. |
| 7.
RATED MOTOR SPEED |
5000
RPM ±10% |
| 8.
AIR FLOW |
77.3 CFM (2.19 m3/Min.) |
| 9.
STATIC PRESSURE |
13.99
mm/H2O (0.55 inch/H2O) |
| 10.
RATED CURRENT |
0.35
Amp ±10% |
| 11.
RATED INPUT POWER |
16.80
Watts ±10% |
| 12.
NOISE LEVEL |
54.7
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
93
gm |
