| D8015M24B/S |
| 1.
MODEL NUMBER |
D8015M24B(X1) |
D8015M24S(X1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
BRUSHLESS
DC FAN |

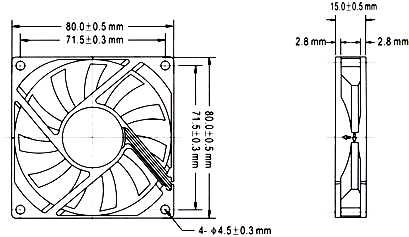

| 3.
FRAME SIZE |
80
x 80 x 15 mm (3.1 x 3.1 x 0.6 inch) |
80
x 80 x 15 mm (3.1 x 3.1 x 0.6 inch) |
| 4.
RATED VOLTAGE |
24
VDC |
24
VDC |
| 5.
OPERATING VOLTAGE RANGE |
21
V ~ 27V |
21
V ~ 27V |
| 6.
START-UP VOLTAGE |
21
V / Min. |
21
V / Min. |
| 7.
RATED MOTOR SPEED |
2500
RPM ±10% |
2500
RPM ±10% |
| 8.
AIR FLOW |
22.5
CFM (0.64 m3/Min.) |
22.5
CFM (0.64 m3/Min.) |
| 9.
STATIC PRESSURE |
1.95
mm/H2O (0.08 inch/H2O) |
1.95
mm/H2O (0.08 inch/H2O) |
| 10.
RATED CURRENT |
0.13
Amp ±10% |
0.13
Amp ±10% |
| 11.
RATED INPUT POWER |
3.12
Watts ±10% |
3.12
Watts ±10% |
| 12.
NOISE LEVEL |
27.08
dB(A) |
27.08
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.LIFE
EXPECTANCY |
50,000
Hrs |
25,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
40 gm |
40 gm |
