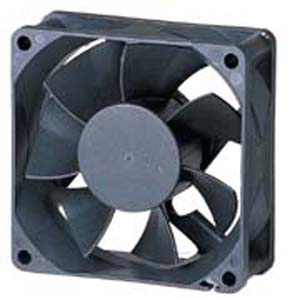

| D7025L12B/S |
| 1.
MODEL NUMBER |
D7025L12B(T1) |
D7025L12S(T1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
BRUSHLESS
DC FAN |
| 3.

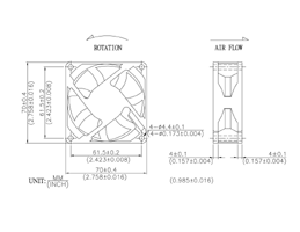

FRAME SIZE |
70
x 70 x 25 mm (2.8 x 2.8 x 1 inch) |
70
x 70 x 25 mm (2.8 x 2.8 x 1 inch) |
| 4.
RATED VOLTAGE |
12
VDC |
12
VDC |
| 5.
OPERATING VOLTAGE RANGE |
9
V ~ 15 V |
9
V ~ 15 V |
| 6.
START-UP VOLTAGE |
9
V / Min. |
9
V / Min. |
| 7.
RATED MOTOR SPEED |
3200
RPM ±10% |
3200
RPM ±10% |
| 8.
AIR FLOW |
24.4
CFM (0.69 m3/Min.) |
24.4
CFM (0.69 m3/Min.) |
| 9.
STATIC PRESSURE |
3.16
mm/H2O (0.124 inch/H2O) |
3.16
mm/H2O (0.124 inch/H2O) |
| 10.
RATED CURRENT |
0.21
Amp ±10% |
0.21Amp
±10% |
| 11.
RATED INPUT POWER |
2.52
Watts ±10% |
2.52
Watts ±10% |
| 12.
NOISE LEVEL |
35.9
dB(A) |
35.9
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
66 gm |
66 gm |
