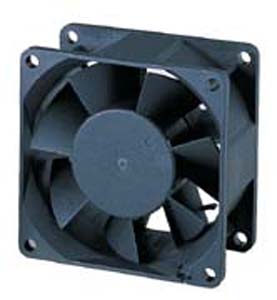

| D6038S12B/S |
| 1.
MODEL NUMBER |
D6038S12B(T1) |
D6038S12S(T1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
BRUSHLESS
DC FAN |

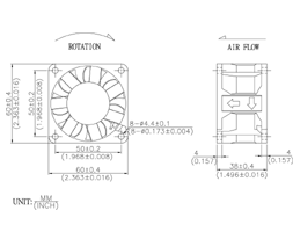

| 3.
FRAME SIZE |
60
x 60 x 38 mm (2.4 x 2.4 x 1.5 inch) |
60
x 60 x 38 mm (2.4 x 2.4 x 1.5 inch) |
| 4.
RATED VOLTAGE |
12
VDC |
12
VDC |
| 5.
OPERATING VOLTAGE RANGE |
9
V ~15V |
9
V ~15V |
| 6.
START-UP VOLTAGE |
9
V / Min. |
9
V / Min. |
| 7.
RATED MOTOR SPEED |
5000
RPM ±10% |
5000
RPM ±10% |
| 8.
AIR FLOW |
29.3
CFM (0.83 m3/Min.) |
29.3
CFM (0.83 m3/Min.) |
| 9.
STATIC PRESSURE |
7.75
mm/H2O (0.30 inch/H2O) |
7.75
mm/H2O (0.30 inch/H2O) |
| 10.
RATED CURRENT |
030
Amp ±10% |
0.30
Amp ±10% |
| 11.
RATED INPUT POWER |
3.60
Watts ±10% |
3.60
Watts ±10% |
| 12.
NOISE LEVEL |
52.9
dB(A) |
52.9
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
95 gm |
95 gm |
