| D4020X05B/S |
| 1.
MODEL NUMBER |
D4020X05B(T1) |
D4020X05S(T1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
BRUSHLESS
DC FAN |
| 3.

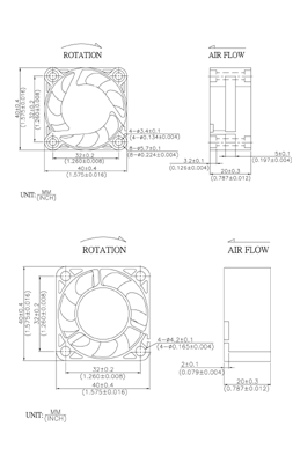

FRAME SIZE |
40
x 40 x 20 mm (1.6 x 1.6 x 0.8 inch) |
40
x 40 x 20 mm (1.6 x 1.6 x 0.8 inch) |
| 4.
RATED VOLTAGE |
5
VDC |
5
VDC |
| 5.
OPERATING VOLTAGE RANGE |
4
V ~ 5.5V |
4
V ~ 5.5V |
| 6.
START-UP VOLTAGE |
4
V / Min. |
4
V / Min. |
| 7.
RATED MOTOR SPEED |
8000
RPM
±10% |
8000
RPM
±10% |
| 8.
AIR FLOW |
11.0
CFM (0.32 m3/Min.) |
11.0
CFM (0.32 m3/Min.) |
| 9.
STATIC PRESSURE |
6.10
mm/H2O (0.24 inch/H2O) |
6.10
mm/H2O (0.24 inch/H2O) |
| 10.
RATED CURRENT |
0.20
Amp
±10% |
0.20
Amp
±10% |
| 11.
RATED INPUT POWER |
1.00
Watts
±10% |
1.00
Watts
±10% |
| 12.
NOISE LEVEL |
35
dB(A) |
35
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.LIFE
EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
34 gm |
34 gm |
