| D17251L48B |
| 1.
MODEL NUMBER |
D17251L48B(X1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
| 3.

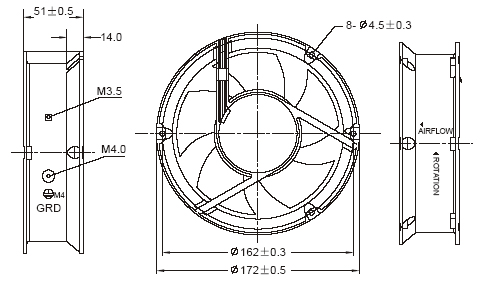

FRAME SIZE |
172
x 51mm (6.7 x 2 inch) |
| 4.
RATED VOLTAGE |
48
VDC |
| 5.
OPERATING VOLTAGE RANGE |
40
V ~ 56V |
| 6.
START-UP VOLTAGE |
40
V / Min. |
| 7.
RATED MOTOR SPEED |
3400
RPM ±10% |
| 8.
AIR FLOW |
236
CFM (6.68 m3/Min.) |
| 9.
STATIC PRESSURE |
20.99
mm/H2O (0.83 inch/H2O) |
| 10.
RATED CURRENT |
0.50
Amp ±10% |
| 11.
RATED INPUT POWER |
24.0 Watts ±10% |
| 12.
NOISE LEVEL |
55.71
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
800
gm |
