| D12738X24B |
| 1.
MODEL NUMBER |
D12738X24B(A2) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
| 3.

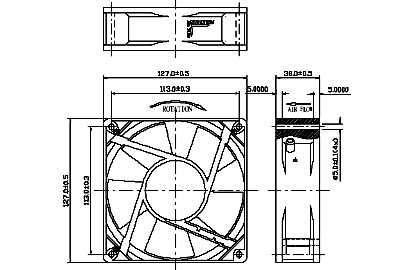

FRAME SIZE |
127
x 127 x 38 mm (5.0 x 5.0 x 1.5 inch) |
| 4.
RATED VOLTAGE |
24
VDC |
| 5.
OPERATING VOLTAGE RANGE |
20
V ~28V |
| 6.
START-UP VOLTAGE |
20
V / Min. |
| 7.
RATED MOTOR SPEED |
3200
RPM ±10% |
| 8.
AIR FLOW |
164
CFM (4.64 m3/Min.) |
| 9.
STATIC PRESSURE |
11.69 mm/H2O (0.46 inch/H2O) |
| 10.
RATED CURRENT |
0.58
Amp ±10% |
| 11.
RATED INPUT POWER |
13.92 Watts ±10% |
| 12.
NOISE LEVEL |
51
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
350
gm |
