| D1238U24B |
| 1.
MODEL NUMBER |
D1238U24B(T1) |
| 2.
CATEGORY |
BRUSHLESS
DC FAN |
| 3.

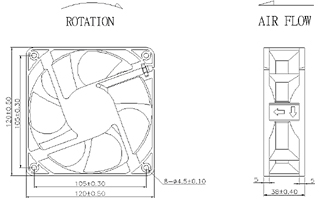

FRAME SIZE |
120
x 120 x 38 mm (4.7 x 4.7 x 1.5 inch) |
| 4.
RATED VOLTAGE |
24
VDC |
| 5.
OPERATING VOLTAGE RANGE |
12
V ~27.6V |
| 6.
START-UP VOLTAGE |
12
V / Min. |
| 7.
RATED MOTOR SPEED |
2800
RPM ±10% |
| 8.
AIR FLOW |
154 CFM (4.36 m3/Min.) |
| 9.
STATIC PRESSURE |
6.99
mm/H2O (0.27 inch/H2O) |
| 10.
RATED CURRENT |
0.50
Amp ±10% |
| 11.
RATED INPUT POWER |
12.00 Watts ±10% |
| 12.
NOISE LEVEL |
48.2
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-10°C
~ + 70°C
/ 66% (RH) |
| 15.
STORAGE TEMPERATURE |
-40°C
~ + 75°C
/ 66% (RH) |
| 16.
BEARING SYSTEM |
BALL
BEARING |
| 17.LIFE
EXPECTANCY |
70,000
Hrs |
| 18.
SAFETY APPROVAL |
UL,
CUL, TUV, CE |
| 19.
WEIGHT |
214
gm |
