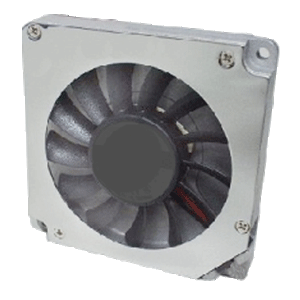

| B5009M05BS |
| 1.
MODEL NUMBER |
B5009M05B |
B5009M05S |
| 2. CATEGORY |
DC Square
Blower |
DC Square
Blower |
| 3. FRAME SIZE |
50 x 50 x 09 mm (2.0 x 2.0 x 0.4 inch) |
50 x 50 x 09 mm (2.0 x 2.0 x 0.4 inch) |
| 4. RATED VOLTAGE |
5 VDC |
5 VDC |
| 5. OPERATING VOLTAGE RANGE |
4 V ~ 5.5 V |
4 V ~ 5.5 V |
| 6. START-UP VOLTAGE |
4 V / Min. |
4 V / Min. |
| 7. RATED MOTOR SPEED |
5000 RPM |
5000 RPM |
| 8. AIR FLOW |
4.03 CFM (0.114
m3/Min.) |
4.03 CFM (0.114
m3/Min.) |
| 9. STATIC PRESSURE |
7.9
mm/H2O (0.31 inch/H2O) |
7.9
mm/H2O (0.31 inch/H2O) |
| 10. RATED CURRENT |
0.17 Amp |
0.17 Amp |
| 11.
RATED INPUT POWER |
0.85 Watts |
0.85 Watts |
| 12. NOISE LEVEL |
29 dB(A) |
29 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10% ~ + 70% / 66% (RH) |
-10% ~ + 70% / 66%
(RH) |
| 15. STORAGE TEMPERATURE |
-40% ~ + 75% / 66% (RH) |
-40% ~ + 75% / 66%
(RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17.LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
31.5 gm |
31.5 gm |
|
