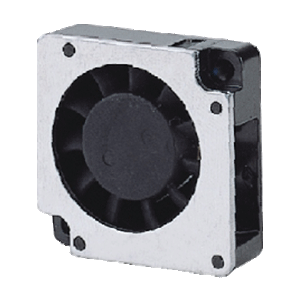

| B3010M12BS |
| 1.
MODEL NUMBER |
B3010M12B |
B3010M12S |
| 2. CATEGORY |
DC Square
Blower |
DC Square
Blower |
| 3. FRAME SIZE |
30 x 30 x 10 mm (1.2 x 1.2 x 0.4 inch) |
30 x 30 x 10 mm (1.2 x 1.2 x 0.4 inch) |
| 4. RATED VOLTAGE |
12 VDC |
12 VDC |
| 5. OPERATING VOLTAGE RANGE |
9 V ~ 15 V |
9 V ~ 15 V |
| 6. START-UP VOLTAGE |
9 V / Min. |
9 V / Min. |
| 7. RATED MOTOR SPEED |
7500 RPM |
7500 RPM |
| 8. AIR FLOW |
1.04CFM (0.029
m3/Min.) |
1.04CFM (0.029
m3/Min.) |
| 9. STATIC PRESSURE |
3.8
mm/H2O (0.15 inch/H2O) |
3.8
mm/H2O (0.15 inch/H2O) |
| 10. RATED CURRENT |
0.09 Amp |
0.09 Amp |
| 11.
RATED INPUT POWER |
0.96 Watts |
0.96 Watts |
| 12. NOISE LEVEL |
27 dB(A) |
27 dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed
from front label |
Clockwise viewed
from front label |
| 14. OPERATING TEMPERATURE |
-10 ~ + 70 / 66%
(RH) |
-10 ~ + 70 / 66%
(RH) |
| 15. STORAGE TEMPERATURE |
-40 ~ + 75 / 66%
(RH) |
-40 ~ + 75 / 66%
(RH) |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17.LIFE EXPECTANCY |
70,000
Hrs |
25,000
Hrs |
| 18. SAFETY APPROVAL |
UL, CUL, TUV,
CE |
UL, CUL, TUV,
CE |
| 19. WEIGHT |
12 gm |
12 gm |
|
