| A9238H11B/S-C |
| 1. MODEL NUMBER |
A9238H11B-C |
A9238H11S-C |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

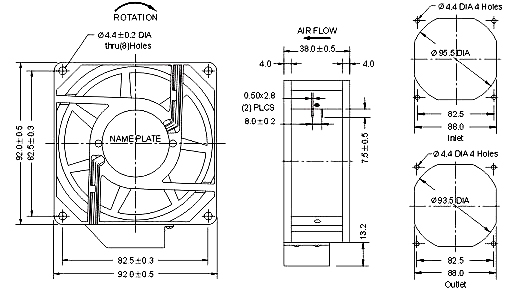

| 3. FRAME SIZE |
92
x 92 x 38 mm (3.6 x 3.6 x1.5 inch) |
92
x 92 x 25 mm (3.6 x 3.6 x1.0 inch) |
| 4. RATED VOLTAGE |
115 VAC |
115
VAC |
| 5. OPERATING VOLTAGE RANGE |
100V
~ 125V |
100V
~ 125V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,800/3,350 RPM
|
2,650/3,200 RPM
|
| 8. AIR FLOW |
51/62
CFM (1.44/1.76 3/Min.) |
48/58
CFM (1.36/1.64 m3/Min.) |
| 9. STATIC PRESSURE |
5.3/7.7 mm/H2O (0.21/0.30 inch/H2O) |
4.6/6.9
mm/H2O (0.18/0.27 inch/H2O) |
| 10. RATED CURRENT |
0.13/0.14 Amp |
0.13/0.14
Amp |
| 11. RATED INPUT POWER |
16/17
Watts |
16/17
Watts |
| 12. NOISE LEVEL |
30/36
dB(A) |
29/35
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1007, AWG#22 |
UL 1007, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
380
gm |
380
gm |
