| A9225H23B/S-C |
| 1. MODEL NUMBER |
A9225H23B-C |
A9225H23S-C |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

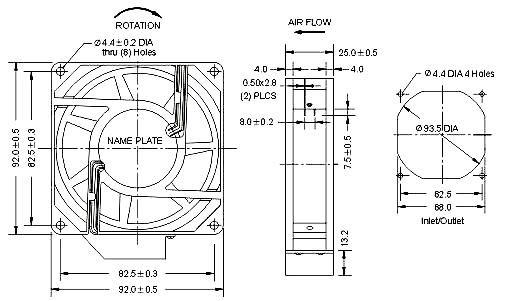

| 3. FRAME SIZE |
92
x 92 x 25 mm (3.6 x 3.6 x1.0 inch) |
92
x 92 x 25 mm (3.6 x 3.6 x1.0 inch) |
| 4. RATED VOLTAGE |
230 VAC |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
220V
~ 240V |
220V
~ 240V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,700/3,200 RPM |
2,350/2,850 RPM |
| 8. AIR FLOW |
46/55
CFM (1.30/1.56 3/Min.) |
43/52
CFM (1.22/1.47 m3/Min.) |
| 9. STATIC PRESSURE |
4.3/6.0 mm/H2O (0.17/0.24 inch/H2O) |
3.1/4.4
mm/H2O (0.12/0.17 inch/H2O) |
| 10. RATED CURRENT |
0.08/0.09 Amp
|
0.08/0.09
Amp |
| 11. RATED INPUT POWER |
17/18
Watts |
17/18
Watts |
| 12. NOISE LEVEL |
30/34
dB(A) |
26/31
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1007, AWG#22 |
UL 1007, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
280
gm |
280 gm |
