| A8038H11B/S |
| 1.
MODEL NUMBER |
A8038H11B |
A8038H11S |
| 2.
CATEGORY |
AXIAL
AC FAN |
AXIAL
AC FAN |
| 3.

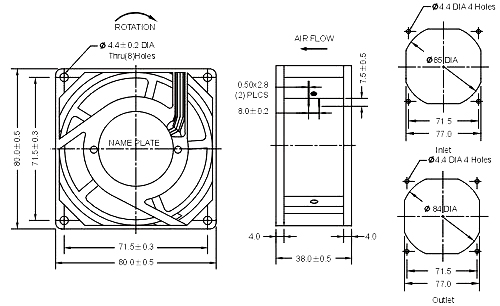

FRAME SIZE |
80
x 80 x 38mm (3.1 x 3.1 x 1.5 inch) |
80
x80 x 38mm (3.1 x 3.1x 1.5 inch) |
| 4.
RATED VOLTAGE |
115
VAC |
115
VAC |
| 5.
OPERATING VOLTAGE RANGE |
105V
~ 125V |
105V
~ 125V |
| 6.
FREQUENCY |
50/60
Hz |
50/60
Hz |
| 7.
RATED MOTOR SPEED |
2,700/3,000
RPM ±10% |
2,400/2,900
RPM ±10% |
| 8.
AIR FLOW |
30/37
CFM (0.85/1.05 m3/Min.) |
30/37
CFM (0.85/1.05 m3/Min.) |
| 9.
STATIC PRESSURE |
3.7/5.0
mm/H2O (0.15/0.20 inch/H2O) |
2.9/4.5
mm/H2O (0.08/0.18 inch/H2O) |
| 10.
RATED CURRENT |
0.20
Amp ±10% |
0.20
Amp ±10% |
| 11.
RATED INPUT POWER |
16/12
Watts ±10% |
16/12
Watts
±10% |
| 12.
NOISE LEVEL |
28/34
dB(A) |
27/32
dB(A) |
| 13.
DIRECTION OF ROTATION |
Clockwise
viewed from front label |
Clockwise
viewed from front label |
| 14.
OPERATING TEMPERATURE |
-20°C
~ + 75°C
/ 66% (RH) ±
20% |
-20°C
~ + 75°C
/ 66% (RH) ±
20% |
| 15.
STORAGE TEMPERATURE |
-30°C
~ + 75°C
/ 66% (RH) ±
20% |
-30°C
~ + 75°C
/ 66% (RH) ±
20% |
| 16.
BEARING SYSTEM |
BALL
BEARING |
SLEEVE
BEARING |
| 17.
LIFE EXPECTANCY |
70,000
Hrs |
30,000
Hrs |
| 18.
FRAME MATERIAL |
METAL
W/ALUMINUM DIE-CASTING |
METAL
W/ALUMINUM DIE-CASTING |
| 19.
IMPELLER MATERIAL |
THERMOPLASTIC
PBT OF UL 94V-0 |
THERMOPLASTIC
PBT OF UL 94V-0 |
| 20.
LEAD WIRE |
UL
1430, AWG#22 |
UL
1430, AWG#22 |
| 21.
SAFETY |
UL,
CUL, TUV, CE |
UL,
CUL, TUV, CE |
| 22.
WEIGHT |
340 gm |
340 gm |
