A1752H-C(X2)

A1752H-C9(X2)
1. MODEL NUMBER	A1752H11B-C9(X2)	A1752H23B-C9(X2)	A1752H38B-C9(X2)
2. CATEGORY	AXIAL AC FAN	AXIAL AC FAN	AXIAL AC FAN

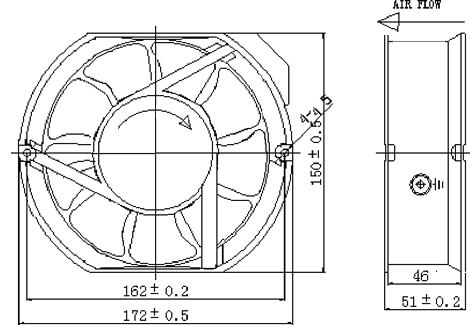

3. FRAME SIZE	172 x 162 x 51 mm (6.7 x 6.3 x 2 inch)	172 x 162 x 51 mm (6.7 x 6.3 x 2 inch)	172 x 162 x 51 mm (6.7 x 6.3 x 2 inch)
4. RATED VOLTAGE	115 VAC	230 VAC	380 VAC
5. OPERATING VOLTAGE RANGE	100V ~ 120 V	160 ~ 260 V	300 ~ 400 V
6. FREQUENCY	50/60 Hz	50/60 Hz	50/60 Hz
7. RATED MOTOR SPEED	2,850/3,250 RPM	2,850/3,250 RPM	2,850/3,250 RPM
8. AIR FLOW	370/430 CFM (10.47/12.18 m³/Min.)	370/430 CFM (10.47/12.18 m³/Min.)	370/430 CFM (10.47/12.18 m³/Min.)
9. STATIC PRESSURE	19.87/24.97 mm/H₂O (0.78/0.98 inch/H₂O)	19.87/24.97 mm/H₂O (0.78/0.98 inch/H₂O)	19.87/24.97 mm/H₂O (0.78/0.98 inch/H₂O)
10. RATED CURRENT	0.3 Amp	0.13 Amp	0.12 Amp
11. RATED INPUT POWER	34.5Watts	29.9 Watts	45.6 Watts
12. NOISE LEVEL	46/53 dB(A)	46/53 dB(A)	46/53 dB(A)
13. DIRECTION OF ROTATION	Counter-Clockwise Viewed from Fan Blade	Counter-Clockwise Viewed from Fan Blade	Counter-Clockwise Viewed from Fan Blade
14. OPERATING TEMPERATURE	-20°C ~ + 120°C	-20°C ~ + 120°C	-20°C ~ + 120°C
15. STORAGE TEMPERATURE	-40°C ~ + 120°C	-40°C ~ + 120°C	-40°C ~ + 120°C
16. BEARING SYSTEM	BALL BEARING	BALL BEARING	BALL BEARING
17. LIFE EXPECTANCY	70,000 Hrs	70,000 Hrs	70,000 Hrs
18. FRAME MATERIAL	METAL W/ALUMINUM DIE-CASTING	METAL W/ALUMINUM DIE-CASTING	METAL W/ALUMINUM DIE-CASTING
19. IMPELLER MATERIAL	THERMOPLASTIC PBT OF UL 94V-0	THERMOPLASTIC PBT OF UL 94V-0	THERMOPLASTIC PBT OF UL 94V-0
20. LEAD WIRE	Terminals	Terminals	Terminals
21. SAFETY	UL, CUL, TUV, CE	UL, CUL, TUV, CE	UL, CUL, TUV, CE
22. WEIGHT	1089 g	1089 g	1089 g
