| A1538H11B-C |
| 1. MODEL NUMBER |
A1538H11B-C |
| 2. CATEGORY |
AXIAL AC FAN |

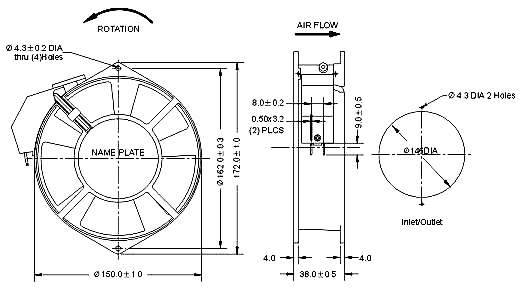

| 3. FRAME SIZE |
162
x 150 x 38 mm (6.4 x 6 x1.5 inch) |
| 4. RATED VOLTAGE |
115
VAC |
| 5. OPERATING VOLTAGE RANGE |
100V
~ 125V |
| 6. FREQUENCY |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,850/3,400 RPM |
| 8. AIR FLOW |
174/208
CFM (4.93/5.9 3/Min.) |
| 9. STATIC PRESSURE |
16.7/19.5 mm/H2O (0.66/0.77 inch/H2O) |
| 10. RATED CURRENT |
0.25/0.26 Amp |
| 11. RATED INPUT POWER |
30/31
Watts |
| 12. NOISE LEVEL |
57/61
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1015, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
| 22. WEIGHT |
710
gm |
