| A12738H23B/S-C |
| 1. MODEL NUMBER |
A12738H23B-C |
A12738H23S-C |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

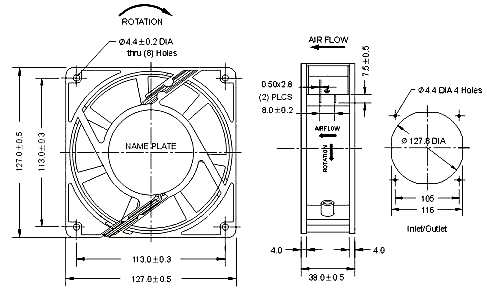

| 3. FRAME SIZE |
127
x 127 x 38 mm (5 x 5 x1.5 inch) |
127
x 127 x 38 mm (5 x 5 x1.5 inch) |
| 4. RATED VOLTAGE |
230
VAC |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
220V
~ 240V |
220V
~ 240V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,800/3,300 RPM
|
2,600/3,050 RPM |
| 8. AIR FLOW |
139/159
CFM (3.94/4.50 3/Min.) |
127/150
CFM (3.60/4.25 m3/Min.) |
| 9. STATIC PRESSURE |
10.3/13.0
mm/H2O (0.41/0.51 inch/H2O) |
8.8/11.4
mm/H2O (0.35/0.45 inch/H2O) |
| 10. RATED CURRENT |
0.12/0.12 Amp
|
0.12/0.12
Amp |
| 11. RATED INPUT POWER |
25/25
Watts |
25/25
Watts |
| 12. NOISE LEVEL |
45/49
dB(A) |
43/47
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1007, AWG#22 |
UL 1007, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
520
gm |
520
gm |
