| A1225H23B/S-C |
| 1. MODEL NUMBER |
A1225H23B-C |
A1225H23S-C |
| 2. CATEGORY |
AXIAL AC FAN |
AXIAL AC FAN |

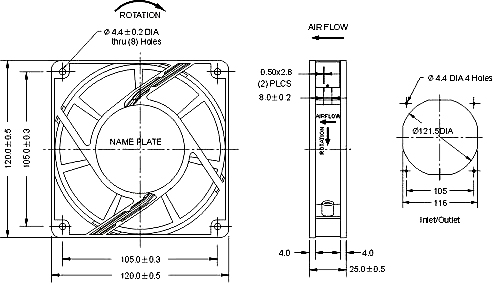

| 3. FRAME SIZE |
120
x 120 x 25 mm (4.7 x 4.7 x1.0 inch) |
120
x 120 x 25 mm (4.7 x 4.7 x1.0 inch) |
| 4. RATED VOLTAGE |
230
VAC |
230
VAC |
| 5. OPERATING VOLTAGE RANGE |
220V
~ 240V |
220V
~ 240V |
| 6. FREQUENCY |
50/60 Hz |
50/60 Hz |
| 7. RATED MOTOR SPEED |
2,800/3,350 RPM |
2,450/2,900 RPM |
| 8. AIR FLOW |
92/110
CFM (2.61/3.11 3/Min.) |
81/96
CFM (2.29/2.72 m3/Min.) |
| 9. STATIC PRESSURE |
7.3/9.0 mm/H2O (0.29/0.35 inch/H2O) |
4.6/6.2
mm/H2O (0.18/0.24 inch/H2O) |
| 10. RATED CURRENT |
0.09/0.09 Amp |
0.09/0.09
Amp |
| 11. RATED INPUT POWER |
19/20
Watts |
19/20
Watts |
| 12. NOISE LEVEL |
42/46
dB(A) |
38/42
dB(A) |
| 13. DIRECTION OF ROTATION |
Clockwise viewed from front label |
Clockwise viewed from front label |
| 14. OPERATING TEMPERATURE |
-20°C ~ + 75°C / 66% (RH) ± 20% |
-20°C ~ + 75°C / 66% (RH) ± 20% |
| 15. STORAGE TEMPERATURE |
-30°C ~ + 75°C / 66% (RH) ± 20% |
-30°C ~ + 75°C / 66% (RH) ± 20% |
| 16. BEARING SYSTEM |
BALL BEARING |
SLEEVE BEARING |
| 17. LIFE EXPECTANCY |
70,000 Hrs |
30,000 Hrs |
| 18. FRAME MATERIAL |
METAL W/ALUMINUM DIE-CASTING |
METAL W/ALUMINUM DIE-CASTING |
| 19. IMPELLER MATERIAL |
THERMOPLASTIC PBT OF UL 94V-0 |
THERMOPLASTIC PBT OF UL 94V-0 |
| 20. LEAD WIRE |
UL 1007, AWG#22 |
UL 1007, AWG#22 |
| 21. SAFETY |
UL, CUL, TUV, CE |
UL, CUL, TUV, CE |
| 22. WEIGHT |
370
gm |
370
gm |
